High Quality Customized Fiber Array Units - China Factory Suppliers for 1ch to 192ch Solutions

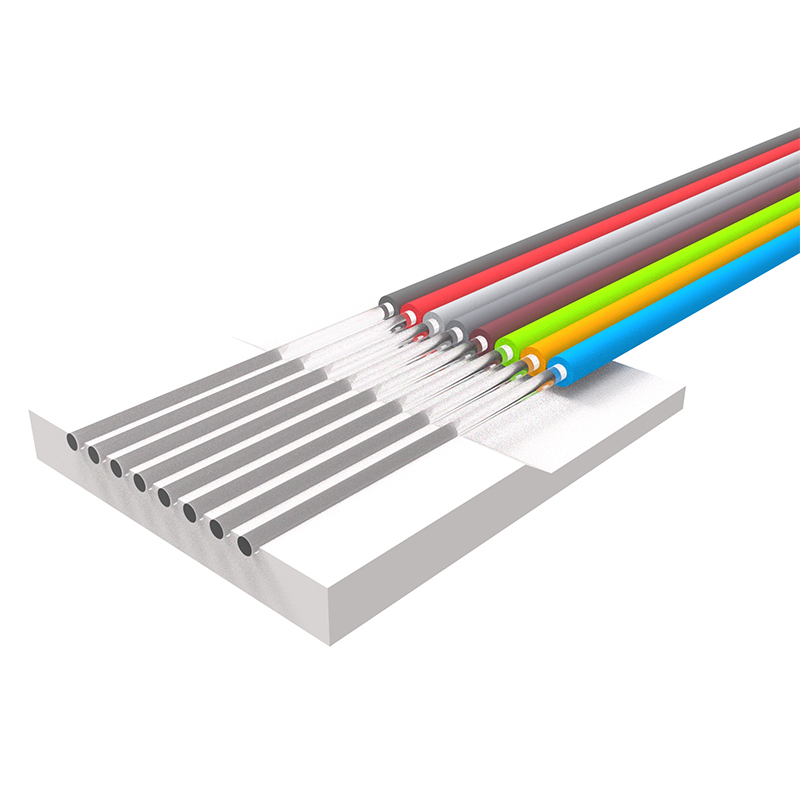

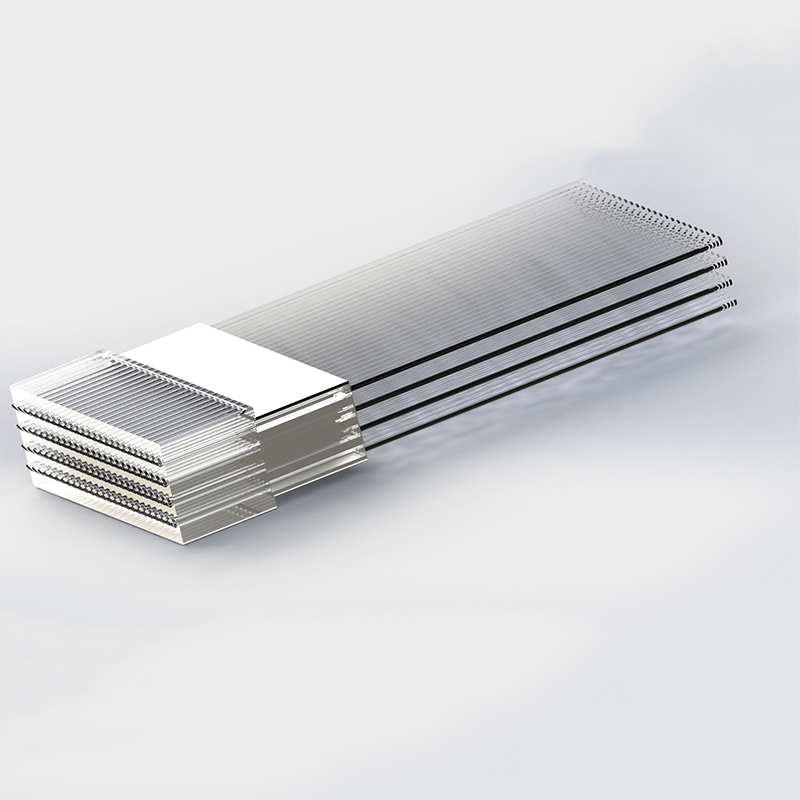

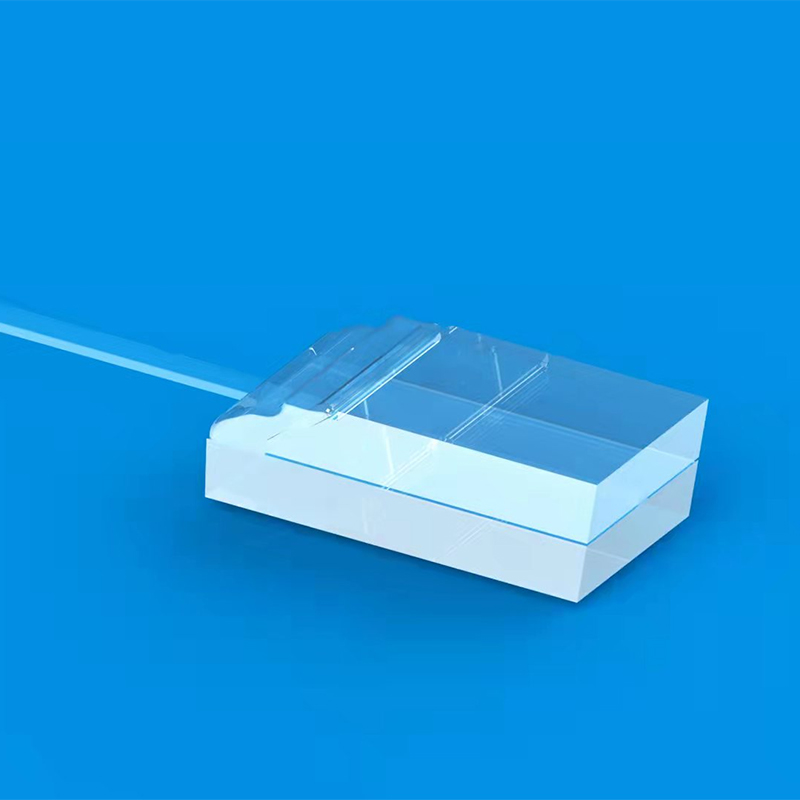

A Fiber Array Unit (FAU) is a key optical component that aligns and packages multiple optical fibers in a precise, parallel arrangement for high-performance fiber-optic connections. Here’s a detailed overview:
🎯 Core Definition & Purpose
It integrates a bundle of optical fibers into a compact, planar array with uniform spacing between fiber cores. Its primary role is to enable efficient light signal transmission between fibers and other optical devices (e.g., PLC splitters, optical transceivers, or waveguides) by ensuring accurate alignment.
⚙️ Key Design & Components
🧬 Optical Fibers
The core element, typically single-mode or multi-mode fibers, arranged in a linear or 2D pattern.
📐 Substrate
A rigid base (often silica, glass, or ceramic) with precision grooves to fix fiber positions, ensuring consistent pitch (common spacing: 127 μm or 250 μm).
🛡️ Cladding/Protective Layer
Covers the fiber bundle to prevent physical damage and maintain alignment stability.
✨ End-Face Treatment
Fibers are polished (e.g., PC or APC polish) to minimize insertion loss and reflectivity at the connection interface.
⚡ Critical Features
-
▶
High Precision Alignment: Fiber cores are positioned with micron-level accuracy, reducing signal loss from misalignment.
-
▶
Compact Size: Packages dozens or hundreds of fibers in a small footprint, ideal for space-constrained optical systems.
-
▶
Low Insertion Loss: Typically <0.3 dB per connection, preserving signal integrity.
-
▶
Mechanical Stability: Resistant to vibration, temperature changes (-40℃ to +85℃), and environmental stress, ensuring long-term reliability.
-
▶
Scalability: Available in various configurations (e.g., 1×12, 1×24, 2×32) to match different fiber count requirements.
🌐 Typical Applications
📡 Passive Optical Networks (PONs)
Paired with PLC splitters for mass fiber signal distribution in FTTH (Fiber-to-the-Home) systems.
🔌 Optical Transceivers & Modules
Enables parallel optical communication (e.g., 40G/100G Ethernet) by connecting multiple fibers to photonic integrated circuits (PICs).
🔬 Test & Measurement Equipment
Used in fiber optic test setups to simultaneously test multiple fibers for insertion loss, return loss, or signal quality.
🏢 Data Centers
Supports high-density fiber connections between servers, switches, and storage systems, improving network bandwidth and scalability.
❓ Frequently Asked Questions (FAQ)
What is a Fiber Array Unit (FAU)?
A Fiber Array Unit (FAU) is a key optical component that aligns and packages multiple optical fibers in a precise, parallel arrangement to enable efficient light signal transmission between fibers and other optical devices.
What materials are typically used for the FAU substrate?
The substrate of a Fiber Array Unit is commonly made of rigid materials such as silica, glass, or ceramic, which feature precision grooves to secure the optical fibers.
What is the typical insertion loss of an FAU?
A Fiber Array Unit typically features a low insertion loss of less than 0.3 dB per connection, preserving high signal integrity.
What temperature range can an FAU withstand?
FAUs offer high mechanical stability and reliability, withstanding operating temperature changes ranging from -40℃ to +85℃.
What are the common configurations and fiber spacings for FAUs?
Common spacing (pitch) between fiber cores is 127 μm or 250 μm. They are scalable and available in various configurations such as 1×12, 1×24, and 2×32 to meet different system requirements.
Where are Fiber Array Units commonly applied?
They are widely used in Passive Optical Networks (PONs) for FTTH, optical transceivers and modules (like 40G/100G Ethernet), fiber optic test and measurement equipment, and high-density connections in data centers.
