High Quality Customized FA-MT Fiber Array from China - Reliable Suppliers and Factory for 400G/800G Transceivers

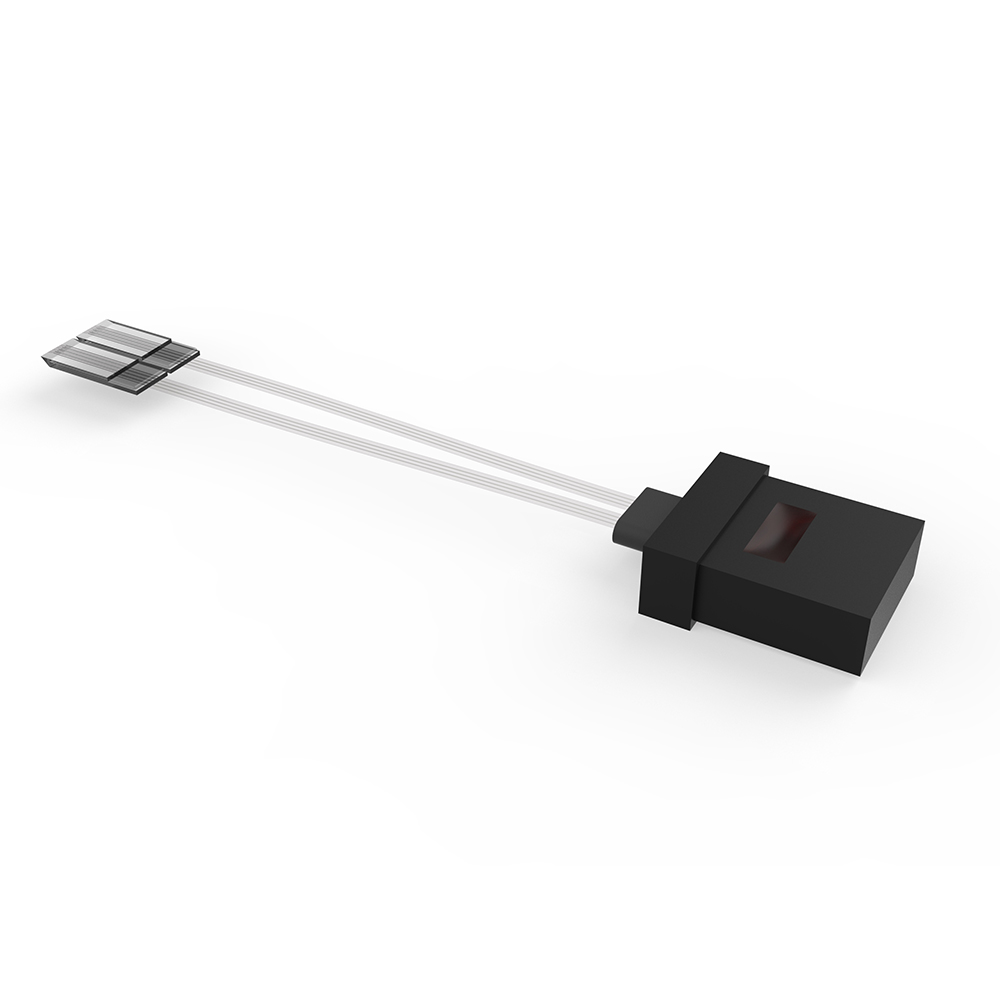

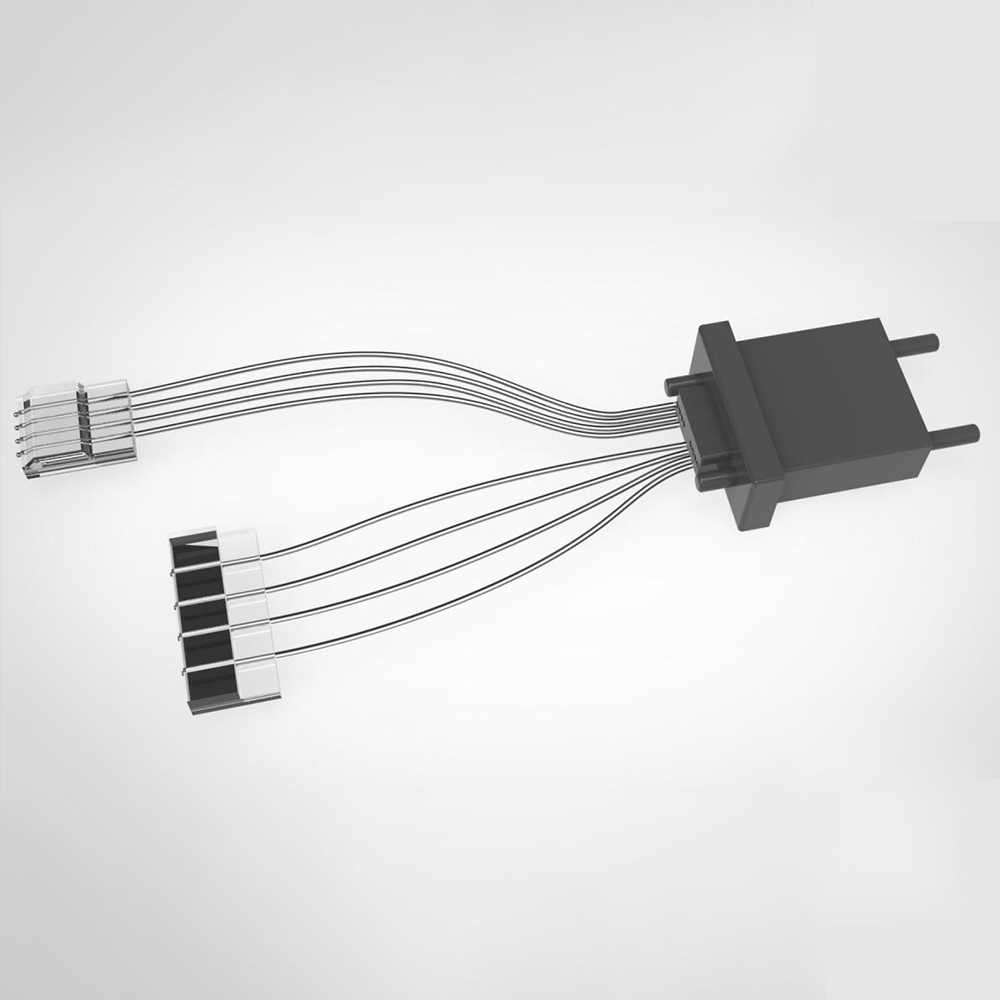

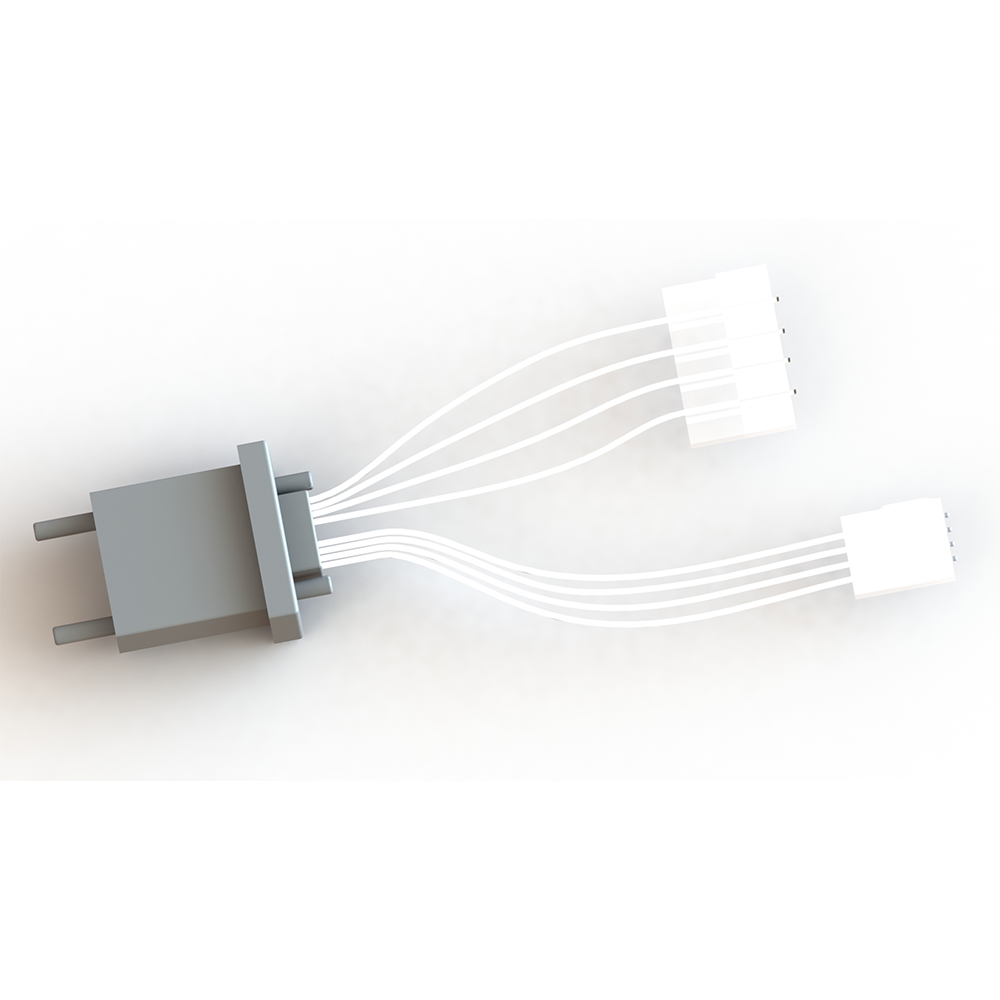

Product Introduction: Simply put, the FA-MT is a key component that combines the advantages of a fiber array (FA) and a MT ferrule. It acts as a bridge, connecting 40G to 800G high-speed optical modules and enabling parallel transmission. It is indispensable for both internal microconnections within optical modules and external port adapters. As a core connection component for 40G-800G high-speed optical modules, it helps upgrade data center bandwidth.
How it works: It utilizes a V-groove baseplate to precisely secure 4 to 24 optical fibers. Combined with the miniaturized structure of the MT ferrule, it creates high-density optical transmission links, enhancing optical signal transmission efficiency.
Core Advantages
High Precision
Fiber core pitch tolerance can be precisely controlled to within ±0.5μm. Single-mode insertion loss is less than 0.35dB, and return loss is as high as 60dB, ensuring stable and clear signal transmission.
Wide Compatibility
Strong adaptability to meet various core pitch requirements from 127μm to 1500μm, eliminating the need for repeated adjustments for different specifications.
Simplified Process
A 42.5° or 90° full-reflection design enables direct vertical steering of the optical path. It can be directly coupled with VCSELs, PD arrays, or silicon photonic chips, reducing optical module packaging steps and saving costs.
Application Scenarios
In practical applications, FA-MT is seamlessly compatible with mainstream form factors such as QSFP, QSFP-DD, and OSFP, encompassing a wide range of applications.
External Connections: Supports external connections for 100G SFP4 optical modules, ensuring stable connection between the module and external devices.
Internal Interconnects: Meets the internal optical interconnect requirements of silicon photonic modules, ensuring smoother signal transmission within the module.
Product Features
Full-Core Features
High stability, high reliability, and high precision—these three core features ensure stable operation in high-speed optical communication scenarios.
Flexible & Practical
Supports compact design and high integration, adapting to optical modules of various sizes without taking up excessive space.
Authoritative Standards
Strictly adheres to Telcordia GR-CORE-1209/1221/468 reliability standards, ensuring professionally certified quality.
Frequently Asked Questions
What is FA-MT and what is its primary function?
FA-MT is a key component combining a fiber array (FA) and an MT ferrule. It acts as a parallel transmission bridge connecting 40G to 800G high-speed optical modules, essential for both internal microconnections and external port adapters.
How does the FA-MT achieve high-density optical transmission?
It utilizes a high-precision V-groove baseplate to secure 4 to 24 optical fibers. Combined with the miniaturized structure of the MT ferrule, it establishes high-density optical transmission links that maximize signal efficiency.
What are the optical performance specifications of the FA-MT?
It features a fiber core pitch tolerance controlled within ±0.5μm. The single-mode insertion loss is less than 0.35dB, and the return loss is as high as 60dB, ensuring stable and clear signal transmissions.
How does the FA-MT simplify the packaging process of optical modules?
With its 42.5° or 90° full-reflection design, it enables direct vertical steering of the optical path. This allows direct coupling with VCSELs, PD arrays, or silicon photonic chips, significantly reducing packaging steps and costs.
What form factors and standards is the FA-MT compatible with?
It is fully compatible with mainstream form factors such as QSFP, QSFP-DD, and OSFP. Additionally, it strictly complies with authoritative reliability standards, including Telcordia GR-CORE-1209, GR-CORE-1221, and GR-CORE-468.
