In the fast-paced world of optical tech, picking the right lens fiber is super important if you want your setup to perform at its best. Like Dr. Emily Carter, a top expert in optical materials and chief scientist at FiberOptic Technologies, pointed out, “Choosing the right lens fiber is really the foundation for how clear and high-quality your optical systems will be.” This just shows how crucial it is to think carefully about different factors when you're selecting lens fibers for specific needs.
Figuring out which lens fiber to go for isn’t just a matter of picking something off the shelf. It’s about understanding what makes each material tick—like their refractive indices, how well they transmit light, and how tough they are. Technology keeps pushing the boundaries, so the options are more diverse than ever, which makes the choice a bit intimidating but also kinda exciting. When you're aiming for better performance, knowing how to match the right material with your specific goals is key.
In this chat, we’ll cover some of the main points to keep in mind when choosing lens fibers—like their material properties, what your application needs, and possible hurdles along the way. By digging into these details, both individuals and teams can make smarter choices that’ll lead to better optical results. The right lens fiber doesn't just boost efficiency; it also opens doors for innovation in areas like telecommunications, medical imaging, and more.
Understanding the Basics of Optical Fibers and Their Lenses
When selecting the right lens fiber for optical applications, it is crucial to first understand the fundamental characteristics of optical fibers and their lenses. Optical fibers are made from silica or polymer and are commonly categorized into single-mode and multimode fibers. According to the International Telecommunication Union (ITU), the global optical fiber market is expected to reach USD 7.56 billion by 2027, indicating a growing reliance on these technologies for telecommunications and data transfer. Single-mode fibers are designed for long-distance transmission with minimal loss and dispersion, while multimode fibers are preferred for shorter distances due to their higher bandwidth capacities.
Tips: When determining the appropriate fiber type, consider the distance and bandwidth requirements of your application. Single-mode fibers are more suited for high-speed internet services that must cover extensive geographical areas, whereas multimode fibers excel in local area networks (LANs) where speed and distance are less critical.
Another essential aspect to consider is the lens specification you will be using with the fiber. Lenses can enhance signal quality and focus light efficiently, but they must be compatible with the characteristics of the fiber being utilized. A report from Research and Markets highlights that the rise in fiber optic communications directly correlates with the advancements in lens technology, specifically adaptive optics that improve system performance and precision. Ensuring the correct pairing of fiber and lens can significantly mitigate signal loss and enhance overall system efficiency.
Tips: Always check the numerical aperture (NA) of both the fiber and lens to ensure they match, optimizing light coupling and minimizing reflections that can degrade performance.
How to Choose the Right Lens Fiber for Your Optical Applications
| Lens Fiber Type |
Core Diameter (µm) |
Numerical Aperture (NA) |
Wavelength Range (nm) |
Common Applications |
| Single-Mode Fiber |
8-10 |
0.10 - 0.15 |
1260-1675 |
Telecommunications, Sensors |
| Multi-Mode Fiber |
50-62.5 |
0.20 - 0.30 |
850-1300 |
Data Networks, Local Area Networks (LAN) |
| Plastic Optical Fiber (POF) |
1000 |
0.50 |
400-1000 |
Consumer Electronics, Short-distance Applications |
| Specialty Fiber |
Varies |
Varies |
200-2000 |
Medical, Military, Research |
Types of Lenses Used in Optical Applications
When selecting the right lens fiber for optical applications,
it's essential to understand the different types of lenses available and their specific uses.
The most common types of lenses include convex,
concave, and
aspheric lenses.
Convex lenses, which are thicker in the middle than at the edges, are ideal for focusing light and are widely used in applications like magnifying glasses and cameras.
On the other hand, concave lenses diverge light rays and find applications in such areas as beam expanders and laser applications.
Aspheric lenses, which have a more complex surface profile, are designed to reduce optical aberrations and enhance image quality, making them suitable for high-performance optical systems.
Tips for choosing the right lens:
- Consider the application's requirements in terms of focal length, diameter, and material.
- Assess the working environment—if the application involves extreme temperatures or exposure to chemicals, selecting durable materials such as glass or specialized plastics will be crucial.
- Lastly, consult with optical engineers to ensure the chosen lens meets the specifications for precision and performance.
Understanding the characteristics of different lens types will significantly impact the efficiency and effectiveness of your optical applications.
Always prioritize the desired optical properties—such as
transmission rate,
refractive index, and
coating options—when making your selection to achieve optimal results.
Key Factors to Consider When Choosing Lens Fibers
When selecting the right lens fiber for your optical applications, several key factors must be considered to ensure optimal performance. The first aspect is the
material composition of the fiber. Different materials exhibit varying levels of light transmission, thermal stability, and chemical resistance. For applications requiring
high clarity and low distortion, opt for fibers made from high-quality glass or specialized polymers that are engineered for optical clarity. Additionally, consider
the index of refraction, as it plays a critical role in determining how the light propagates through the fiber, directly affecting image quality.
Another important factor is the
diameter and flexibility of the lens fiber. A thinner fiber may be preferred in applications where space is limited, but it could compromise durability. Conversely, thicker fibers
can offer greater strength and resilience, making them suitable for harsher environments. The
flexibility of the fiber is also crucial, especially for applications requiring intricate designs or tight bends.
Lastly, it’s essential to evaluate the
operating wavelength range; certain fibers are designed to perform best at specific wavelengths, which can significantly influence the effectiveness of your optical system.
Careful consideration of these factors will help you choose a lens fiber that enhances the overall performance of your optical application.
Assessing the Compatibility of Lens Materials with Application Needs
When selecting the right lens fiber for optical applications, it is crucial to evaluate how well the lens materials align with specific application requirements. Different optical fibers exhibit varying mechanical, thermal, and optical properties, which can significantly impact performance. For instance, certain applications may require high durability and resistance to harsh environments, while others prioritize optical clarity and minimal light distortion. Understanding the end-use of the lens will facilitate better compatibility assessment.
Tips for choosing the right lens fiber include considering the refractive index and the wavelength of light used in your application. A lens with a suitable refractive index ensures optimal light transmission and minimizes losses. Additionally, evaluating the environmental conditions in which the lenses will be used—such as temperature fluctuations and exposure to chemicals—can guide your choice of materials. Always consult material datasheets and specifications to ensure that the selected lens fibers meet the demands of your specific application.
Moreover, compatibility with other optical components should also be a key consideration. Ensure that the lens materials can easily interface with housings, mounts, or other optical elements without introducing alignment issues or reducing system performance. This holistic approach will enhance the efficiency and effectiveness of your optical setup.
Evaluating Performance Specifications: Size, Shape, and Focal Length

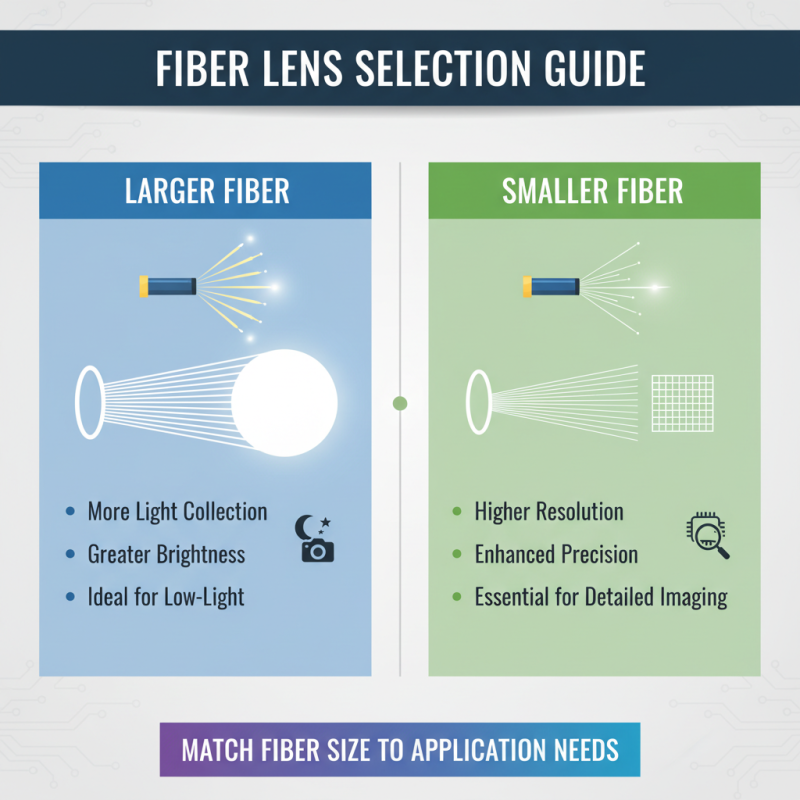

When selecting a fiber lens for optical applications, evaluating the performance specifications is crucial. The size of the lens fiber plays a significant role in determining its suitability for a particular application. Larger fibers can collect more light and transmit images with greater brightness, making them ideal for low-light environments. Conversely, smaller fibers may offer higher resolution and precision, which is essential for applications requiring detailed imaging. Therefore, it is vital to match the fiber size to the specific requirements of the task at hand.
The shape of the lens fiber is another critical factor to consider. Different shapes, such as circular or rectangular fibers, can influence the optical performance and the way light is manipulated within the lens. For instance, circular fibers may provide a more uniform light distribution, while rectangular fibers can be tailored for specific imaging systems, such as those used in industrial applications. Additionally, the focal length of the lens is an essential specification, as it determines how the lens will converge light and how close the object can be positioned for optimal imaging. A shorter focal length allows for capturing detailed images of closer objects, while a longer focal length is beneficial for distant imaging. Thus, understanding these specifications aids in selecting the right lens fiber for effective optical performance.
Common Applications of Lens Fibers in Various Industries
Lens fibers are integral to a wide range of optical applications across various industries, each serving distinct needs. In telecommunications, for instance, lens fibers are crucial for transmitting data over long distances with minimal signal loss. The optical clarity and precision of these fibers enable high-speed internet and efficient communication systems, making them the backbone of modern connectivity.
Similarly, in the medical field, lens fibers are employed in endoscopic devices, allowing for minimally invasive procedures and accurate diagnostics. The use of lens fibers in such contexts highlights their role in enhancing visibility and precision in medical interventions.
In the automotive industry, lens fibers play a vital role in advanced driver-assistance systems (ADAS). These fibers enable the accurate detection of objects and obstacles, enhancing safety through improved vision capabilities. Additionally, they are used in various sensor technologies that support automated driving features.
Furthermore, lens fibers find applications in the defense sector, where they are utilized in surveillance and targeting systems, benefiting from their durability and effectiveness in challenging environments. The diverse applications of lens fibers across these industries illustrate their importance in advancing technology and improving functionality in critical systems.
Best Practices for Maintaining and Handling Optical Lenses
Maintaining and handling optical lenses properly is crucial to ensure their longevity and performance in various applications. One of the best practices is to always use appropriate cleaning techniques. When cleaning optical lenses, it is essential to use a microfiber cloth and a suitable lens cleaning solution. Avoid using paper towels or rough fabrics, as these can scratch the lens surface. Additionally, it is advised to clean lenses in a controlled environment to minimize dust and debris that could cause further scratches during the cleaning process.
Handling lenses with care is equally important. When holding an optical lens, always grasp it by the edges to prevent fingerprints and smudges on the optical surface. If possible, use gloves to eliminate oil transfer from your fingers. Storing lenses in dedicated cases when not in use helps protect them from physical damage and exposure to dust. Keep lenses away from extreme temperatures and humidity, as these conditions can affect their optical properties. By following these best practices, you can maintain the integrity and clarity of your optical lenses, ensuring optimal performance over time.
FAQS
: The main types of lenses used in optical applications are convex, concave, and aspheric lenses. Convex lenses focus light and are used in magnifying glasses and cameras, while concave lenses diverge light rays and are applied in beam expanders and laser applications. Aspheric lenses have complex surface profiles that reduce optical aberrations and improve image quality.
When choosing the right lens, consider the application's requirements for focal length, diameter, and material. Assess the working environment, looking for durability if exposure to extreme temperatures or chemicals is expected. Consulting with optical engineers can help ensure the lens meets precision and performance specifications.
The lens material is crucial as it affects mechanical, thermal, and optical properties, which directly impact performance. Certain applications require materials with high durability and resistance to harsh environments, while others may prioritize clarity and minimal distortion of light.
When assessing lens compatibility, consider the refractive index and the wavelength of light used, as these affect light transmission. Also, evaluate environmental conditions, and ensure that lens materials can interface with other optical components without causing alignment issues or performance reductions.
The size of the lens fiber influences its ability to collect light and transmit images. Larger fibers can gather more light for brighter images, ideal for low-light situations, while smaller fibers offer higher resolution and precision, essential for detailed imaging tasks.
The shape of the lens fiber (circular or rectangular) affects optical performance and light manipulation. Circular fibers provide uniform light distribution, while rectangular fibers can be customized for specific imaging systems, especially in industrial applications.
Focal length determines how the lens converges light and the proximity of objects for optimal imaging. A shorter focal length captures detailed images of closer objects, while a longer focal length is preferable for imaging distant subjects. Understanding this helps in selecting the right lens for effective performance.
To ensure optimal light transmission, choose a lens with a suitable refractive index that matches the wavelength of light used in your application. This minimizes losses and enhances the efficiency of the optical setup.
To maintain system performance, ensure that the selected lens materials easily interface with other components like housings and mounts, avoiding alignment issues that could degrade performance. Compatibility assessments with additional optical elements are crucial for a holistic optical setup.
Conclusion
In the article "How to Choose the Right Lens Fiber for Your Optical Applications," readers are guided through essential considerations in selecting lens fibers tailored to specific needs. It begins with a foundational understanding of optical fibers and lenses, followed by a detailed exploration of the various types of lenses utilized in optical applications. Key factors such as compatibility of lens materials, performance specifications like size, shape, and focal length, and common industrial applications are discussed thoroughly.
The article emphasizes the importance of evaluating these aspects to ensure optimal performance in various applications. Furthermore, it offers best practices for maintaining and handling optical lenses, reinforcing the need for care and precision when working with lens fibers in different environments. By emphasizing these critical components, the article serves as a comprehensive resource for effectively choosing the right lens fiber for diverse optical needs.
